PORTABLE GERMAN READING LAMP

[WWII Portable German Reading Lamp]

A new portable electric-battery reading lamp that can be strapped to the forehead, particularly useful in studying maps and aerial photographs and in plotting fire-control data at night, has been produced by the Germans. Freeing the user's hands, it has the additional advantage of providing a safe light for close night work in forward areas. When the lamp is tilted downward at a 45° angle its visibility is virtually zero if the beam is kept from striking a shiny or brightly colored object.

When the beam is directed at a map or chart, held in the normal reading position, the effectively lighted area is approximately 7 by 11 inches.

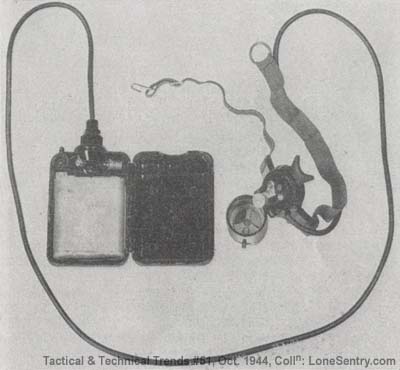

The lamp consists essentially of three parts, battery case. lead wire, and an enclosed lamp receptacle. An elastic strap, attached to the receptacle, enables the user to wear it like a miner's lamp. The battery case is carried in the user's hip pocket, and the lead wire lies along his back.

The Bakelite battery case is light in weight. Its dimensions are 1 1/4 by 3 by 4 inches and it contains a 4.5-volt dry battery.

[German 88-mm antitank gun Pak 43/41.]
German 88-mm antitank gun Pak 43/41.

The lamp receptacle is tubular in shape, 1 3/8 inches in diameter and 2 inches in length, and it, like the battery case, is made of bakelite. The front end of the tube is inclosed except for a fan-shaped light opening three-eighths by five-eighths inches. The opening is provided with both a clear-glass and a blue-glass covering. The desired covering may be placed over the light opening by turning a circular holder, into which both glasses are fitted. The blue glass cuts the normal light intensity about 25 percent and slightly intensifies red detail on a map. A semicircular hood extends three-eighths inch beyond the light opening. The tube contains a 3.5-volt lamp.

The electrical lead connecting the lamp receptacle to the battery is a very flexible rubber-insulated steel wire.
