Data

Overall length		3-5/8 or 4 ins.
Color		Body is painted yellow; the head of igniter blue.
Maximum diameter		2 inches.
Igniter		B.Z.E.
Delay		4 - 5 seconds.

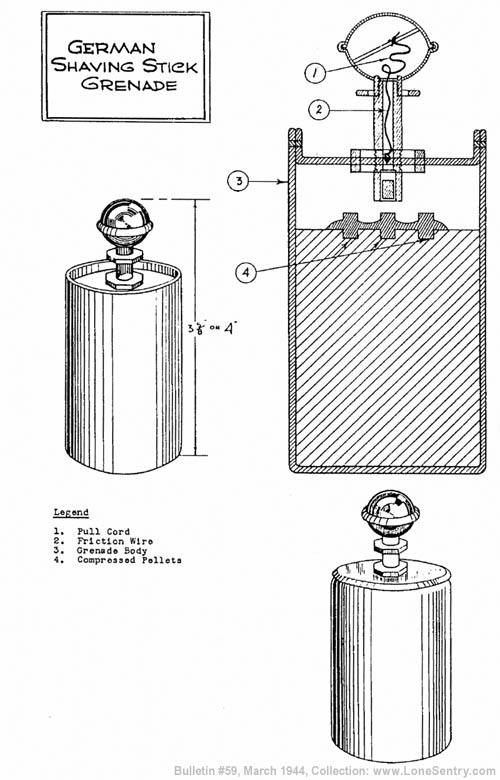

Description

This is a thin-cased "offensive" grenade with the B.Z.E. friction igniter screwed into the top. The body of this grenade is an aluminum cylinder painted yellow. There are two models of this grenade, one being 3-5/8" in length and the other 4" in length.

This grenade may also be used as a booby trap by the insertion of a D.Z. 35 Pressure Igniter.

Operation

The head of the igniter is unscrewed and pulled thus drawing the wire through the friction composition and igniting the delay pellet. The grenade is then thrown and after a 4-5 second delay, the delay element will initiate the detonator.
