Data

Overall length		4.7 inches.
Maximum diameter		2.3 inches.
Color		Olive drab.
Total weight		21 ounces.
Filling		(HC) Berger type mixture. Zinc & Hexachlorethane.
Ignition		B.Z.E.
Delay
N4 Ignition tube		4½ seconds.

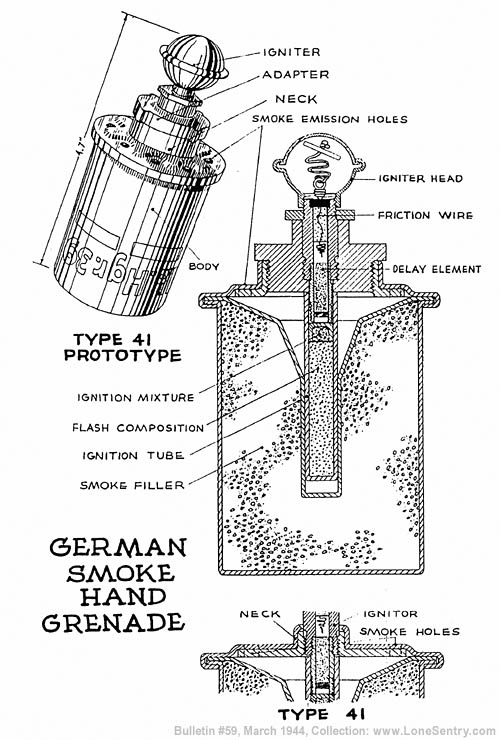

Description (Prototype)

This grenade consists of a body which is the head of the smoke Hand Grenade 39 into which the B.Z.E. igniter in fitted by means of an adapter made of some synthetic resin. The adapter is threaded externally to screw into the neck of the grenade body and internally to receive the igniter. The closed end of the ignition tube is painted green. Nb. Hgr. 39 is stencilled in white over a broken white band around the body. It has the eight smoke emission holes of the Model 39.

Description (Model 41)

This grenade is of the same construction as the Nebelhandgranate 39 and the Nebelhandgranate 41 prototype. However, the body has been modified so that the adapter to take the B.Z.E. igniter is not necessary. A dished plate with a small central neck in the top replaces the old wide screw neck plate which required the adapter. There are only two smoke emission holes. The letters Nb. Hgr. 41 and a broken line are stencilled in white on the grenade body.
