TM 9-2800: Standard Military Motor Vehicles
Technical Manual, U.S. War Department, September 1, 1943
[DISCLAIMER: The following text and illustrations are taken from a WWII U.S. War Department Technical Manual. As with all wartime manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]


CARRIAGE, MOTOR, 37-MM GUN, M6 (3/4-TON, 4 x 4)

Technical Manuals: TM 9-750A, TM 9-1808A

Parts List: SNL G-121

Manufacturer: Dodge Bros. Corp. (Div. of Chrysler Corp.) Model WC-55.

Armament: One Gun, 37-mm, M3; four Rifles, cal. .30, M1903, with Launcher, grenade.

Ammunition: 80 rounds 37-mm; 18 grenades.

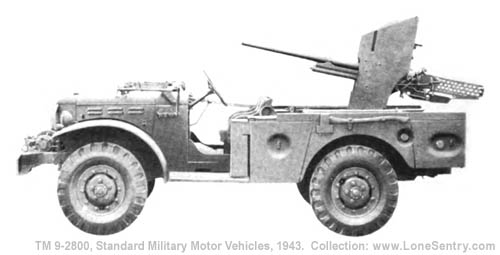

[Carriage, Motor, 37-mm Gun, M6 (3/4-Ton, 4 x 4) WC-55]
RA PD 66373

Classification: Standard

Purpose: To provide mobility for 37-mm antitank gun.

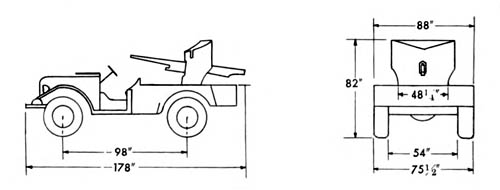

[Diagram of Carriage, Motor, 37-mm Gun, M6 (3/4-Ton, 4 x 4) Dodge WC-55]

GENERAL DATA
Crew  4
WeightNet(lb) 5,850
Payload(lb) 1,200
Gross(lb) 7,050
Boxed for export(lb) 8,900
Shipping dimensions(cu ft) 708, boxed 605(sq ft) 102
Tires—CombatPly 8Size 9.00 x 16
Tread, center to center (in.)  (in.)64 1/2
Track width(in.)12 1/4
Ground clearance(in.) 10 5/8
Ground pressure, tires(lbs per sq in.)40
Electrical system(volts)6
CapacitiesFuel, 70 octane gasoline(gal)30
 Cooling system(qt)17
 Crankcase (refill)(qt)5
BrakesHydraulic
CommunicationRadio

PERFORMANCE
Maximum gradability(percent)60
Turning radius (ft)22
Fording depth(in.)35
Maximum vertical obstacle vehicle will climb(in.)12
Angle of approach (deg)36 1/2
Angle of departure(deg)31
Fuel consumption, average conditions(miles per gal)8.0
Cruising range, average conditions(miles)240
Maximum allowable speed(mph)54

ENGINE
ManufacturerDodgeModel T-214
TypeIn-line, 4 cycleNumber of cylinders6
Displacement(cu in.)230.2
Governed speed(rpm)3,200
Brake horsepower 94
Ignition typeBattery

ADDITIONAL DATA
Winch capacity(lb)5,000
Basic chassisWeapons carrier, 3/4-ton, 4 x 4
