TM 9-2800: Standard Military Motor Vehicles
Technical Manual, U.S. War Department, September 1, 1943
[DISCLAIMER: The following text and illustrations are taken from a WWII U.S. War Department Technical Manual. As with all wartime manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]


Technical Manuals: TM 9-710A, TM 9-1710, TM 9-1710C, TM 9-1711

Parts List: SNL G-102

Manufacturers: The Autocar Co.; Diamond T Motor Car Co.; White Motor Co.

Armament: One Gun, machine, cal. .30, M1919A4: one Gun, submachine, cal. .45, M1928A1; provision for 12 rifles, U.S., cal. .30, M1, M1903, or M1903A1.

Ammunition: 4,000 rounds, cal. .30; 540 rounds, cal. .45; 24 Mines, AT, w/ fuze, M1; 22 hand grenades.

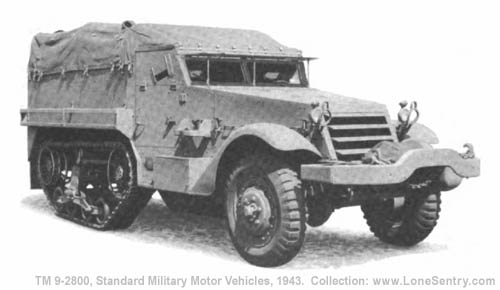

[Carrier, Personnel, Half-Track, M3]
RA PD 309053

Classification: Standard

Purpose: To transport cargo and personnel in combat zone.

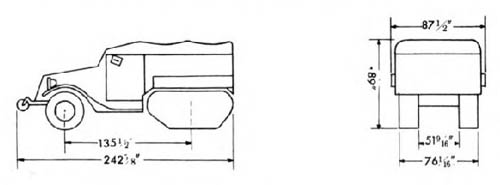

[Carrier, Personnel, Half-Track, M3 Diagram]

Crew  13
WeightPayload—w/ winch(lb) 3,000
 Payload—w/o winch(lb) 3,500
 Gross(lb) 17,650
Shipping dimensionsw/winch (cu ft) 924(sq ft) 148
 w/o winch (cu ft) 903(sq ft) 148
Tires—CombatPly 12Size 8.25 x 20
Tread, center to center  Front(in.)64 1/2
Track width(in.)12 1/4
Ground clearance(in.) 11 3/16
Ground pressure, tires(lbs per sq in.)29.4
Electrical system(volts)12
CapacitiesFuel, 80 octane gasoline(gal)60
 Cooling system(qt)26
 Crankcase (refill)(qt)12
BrakesHydraulic (Hydrovac)
Maximum gradability(percent)60
Turning radius (ft)Right 30Left 29 1/2
Fording depth(in.)32
Maximum vertical obstacle vehicle will climb(in.)12
Angle of approach (deg)With winch 33Without winch 37
Angle of departure(deg)45
Fuel consumption, average conditions(miles per gal)3.6
Cruising range, average conditions(miles)220
Maximum allowable speed(mph)45
   1st  2nd  3rd  4th
Cruising speed  9  17  26  45
ManufacturerWhiteModel 160 AX
TypeIn-line, 4 cycleNumber of cylinders6
Displacement(cu in.)386
Governed speedNot governed
Brake horsepower 148
Winch capacity(lb) 10,000
