TM 9-2800: Standard Military Motor Vehicles
Technical Manual, U.S. War Department, September 1, 1943
[DISCLAIMER: The following text and illustrations are taken from a WWII U.S. War Department Technical Manual. As with all wartime manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]

CAR, SCOUT, M3A1, (4 x 4)

Technical Manuals: TM 9-705, TM 9-1705, TM 9-1706, TM 9-1709

Parts List: SNL G-67

Manufacturer: White Motor Co.

Armament: One Gun, machine, cal. .30, M1919A4, flexible; one Gun, machine, cal. .50, HB, M2, flexible; one Gun, submachine, cal. .45, M1928A1.

Ammunition: 8,000 rounds, cal. .30; 750 rounds, cal. .50; 540 rounds, cal. .45.

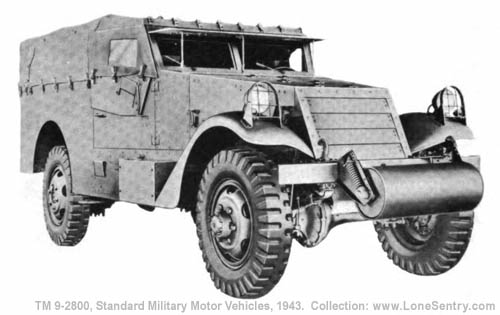

[Car, Scout, M3A1, (4 x 4)]
RA PD 66367

Classification: Standard

Purpose: To provide mobility and crew protection for reconnaissance in combat.

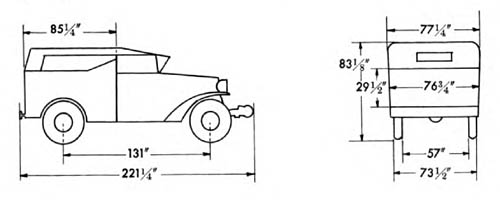

[Diagram: Car, Scout, M3A1, (4 x 4)]

Crew, operating       2Passenger capacity including crew8
WeightNet(lb) 8,900
 Payload(lb) 2,850
 Gross(lb) 11,750
 Boxed for export(lb) 12,951
Shipping dimensions(cu ft) 723(sq ft) 118
Tires—CombatSize 8.25 x 20
Tread, center to center (in.)  Front 63 1/4Rear 65 1/4
Ground clearance(in.)15 3/4
Ground pressure(lbs per sq in.)60
Electrical system(volts)12
CapacitiesFuel, 70 octane gasoline(gal)30
 Cooling system(qt)19
 Crankcase (refill)(qt)6
BrakesHydraulic (Hydrovac)
Maximum gradability(percent)60
Turning radius(ft)28 1/2
Fording depth(in.)28
Angle of approach(deg)37
Angle of departure(deg)35
Fuel consumption, average conditions(miles per gal)8 1/2
Cruising range, average conditions(miles)250
Maximum allowable speed(mph)55 1/2
   1st  2nd  3rd  4th
Cruising speed  11.1  17.6  32.3  55.5
ManufacturerHerculesModel JXD
TypeIn-line, 4 cycleNumber of cylinders6
Displacement(cu in.)320
Governed speedNot governed
Brake horsepower 110
Ignition typeBattery
