TM E9-369A: German 88-mm Antiaircraft Gun Materiel
Technical Manual, War Department, June 29, 1943
[DISCLAIMER: The following text is taken from a WWII U.S. War Department Technical Manual. As with all manuals, the text may be incomplete or inaccurate. No attempt has been made to update or correct the contents of the original technical manual. Any views or opinions expressed do not necessarily represent those of the website.]

CHAPTER 5
FIRING TABLES

 Paragraph
Firing table for the 8.8 cm Flak 18 and 36 with 8.8 cm H.E. Shell L/4.5 (Kz)*

       with Time Fuze S/30 or P.D. Fuze 23/28 (table I)  .....................................
 88
Firing table for the 8.8 cm Flak 18 and 36 with 8.8 cm A.P. Shell with

       Base Fuze (table II)  ..................................................................................
 89
Conversion tables  ............................................................................................
 90

88. FIRING TABLE FOR THE 8.8 cm FLAK 18 AND 36 WITH 8.8 cm H.E. SHELL L/4.5 (Kz)* WITH TIME FUZE S/30 OR P.D. FUZE 23/28 (TABLE I).

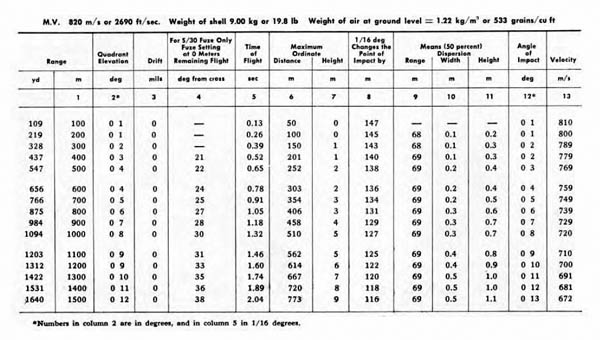

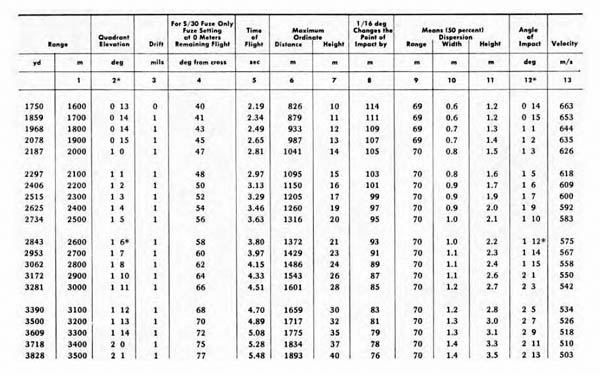

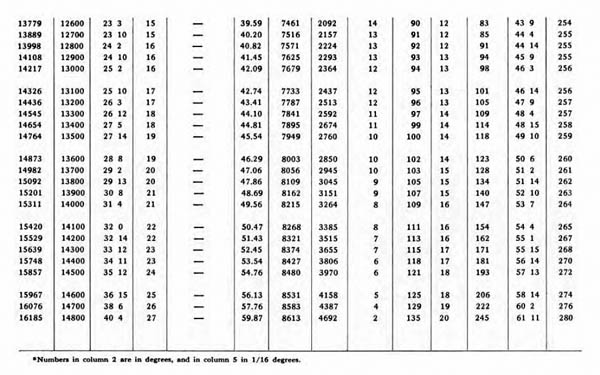

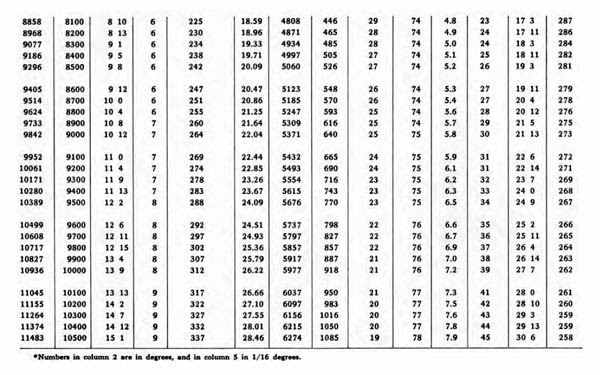

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

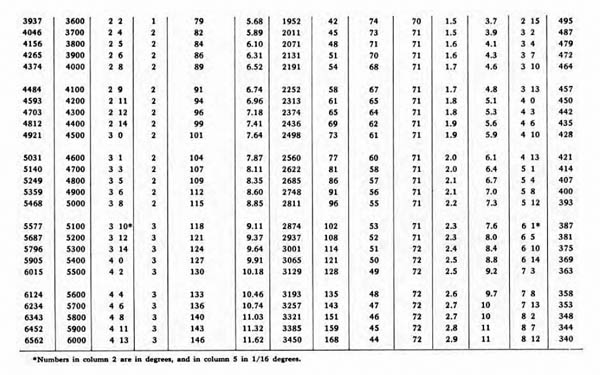

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

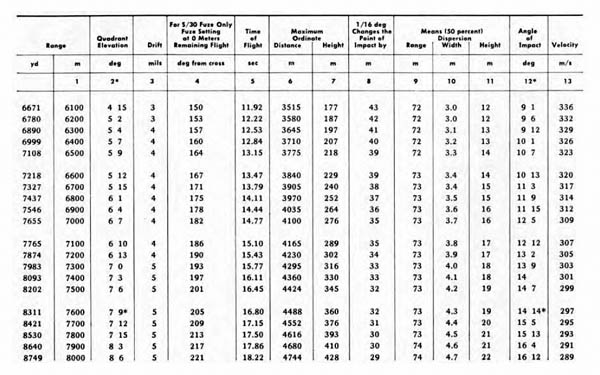

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

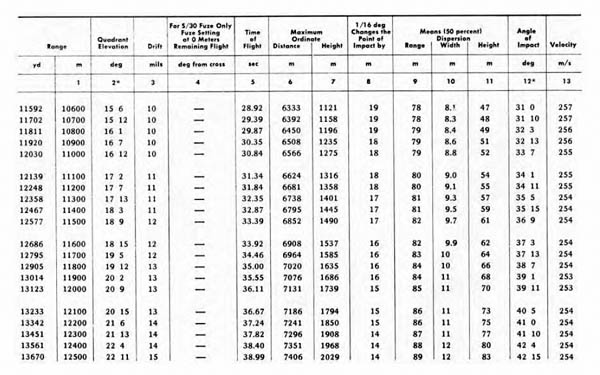

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm High-Explosive Shell L/4.5 (Kz)* with Time Fuze S/30 or P.D. Fuze 23/28]

89. FIRING TABLE FOR THE 8.8 cm FLAK 18 AND 36 WITH 8.8 cm A.P. SHELL WITH BASE FUZE (TABLE II).

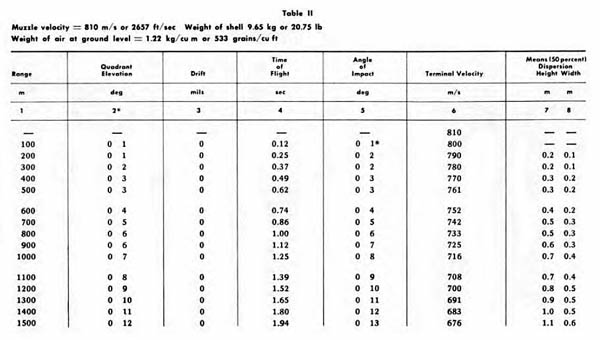

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm Armor-Piercing Shell with Base Fuze]

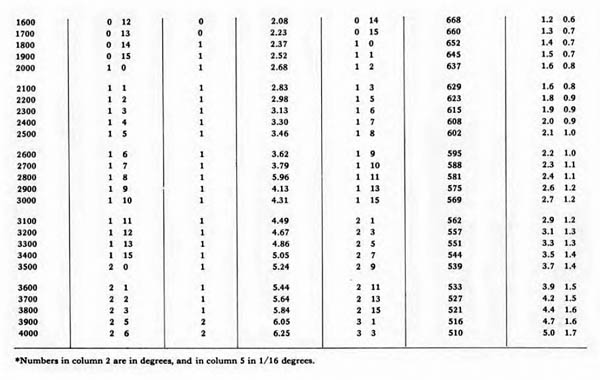

[Table II: Firing Table for the 8.8 cm Flak 18 and Flak 36 with 8.8 cm Armor-Piercing Shell with Base Fuze]

90. CONVERSION TABLES.

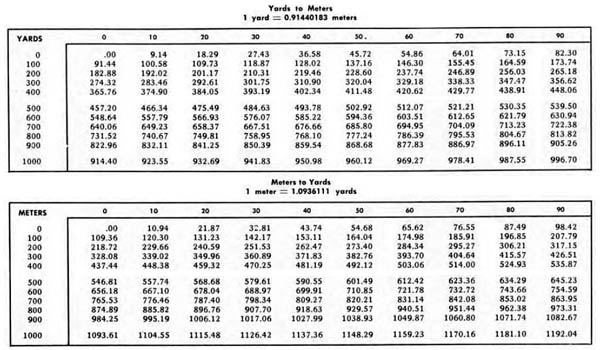

[Conversion Tables: Yards to Meters; Meters to Yards]

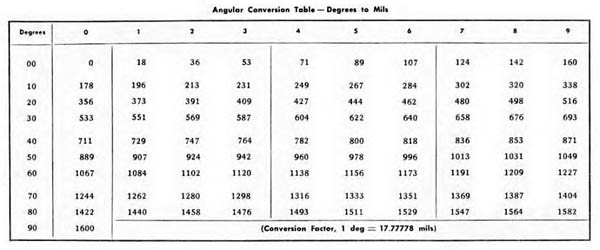

[Angular Conversion Table -- Degrees to Mils]

*Kz—Kopfzünder = Nose fuze.
